OUR FACTORY & EQUIPMENT
Our Production Line
Engineering
Our comprehensive industry chain encompasses the entire workflow, including melting, forging, rolling, drawing, piping, and investment casting. We specialize in delivering a diverse range of products, including forgings, bars, wires, strips, plates, pipes, and castings.

Melting
Vacuum Induction Melting is a specialized melting process used in metallurgy. It is a method of melting metals under vacuum conditions using induction heating.
Vacuum Induction Melting is commonly used in the production of high-performance alloys for industries such as aerospace, medicine, and electronics where material purity and precise control over alloy composition are crucial.
In Vacuum Induction Melting:
Vacuum Environment: The process takes place in a vacuum or low-pressure environment to prevent reactions with gases in the air. This helps produce high-purity metals and alloys.
Induction Heating: Induction heating involves using an electromagnetic field to heat a conductive material (like metal). In VIM, an induction coil is used to generate the necessary heat to melt the metal.
Melt and Refining: The metal is melted by the inductive heating, and the vacuum environment allows for precise control of the melting and refining process. It’s particularly useful for producing alloys with specific compositions and minimizing impurities.

ALD 8T VIM

6T PESR

1.3T VIM

ALD 6T VAR

Homogenizing Annealing Furnace

Forging & Hot Rolling

6T Electro-hydraulic Hammer
80mm-250mm square forgings / 100mm-300mm round bar

3T Electro-hydraulic Hammer
50mm-150mm square forgings / 60mm-120mm round bar

250 Rolling machine

Heat Treatment & Machining

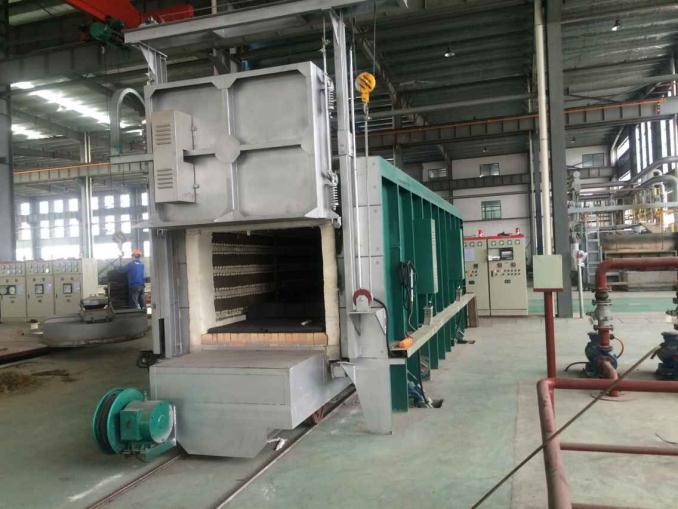

Heat Treatment

Straightening

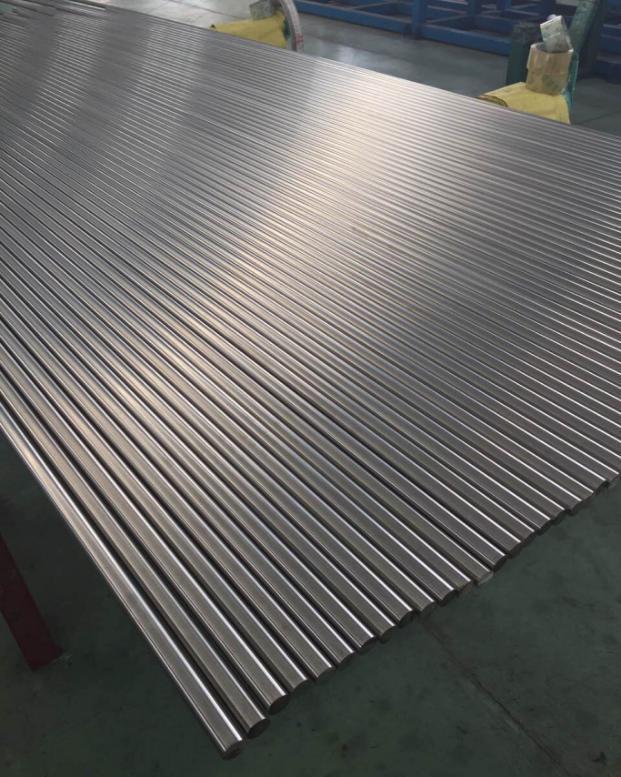

Polishing

Peeling

Ultrasonic Testing

Inspected bar size: Dia.6mm-Dia.100mm
Inspected bar length: 1.2m-6m
Inspected defect type:
inside & near surface(0.035mm)
Wire Drawing

19m hydrogen protection

8 continuous-drawing

6 continuous-drawing




Tube Manufacture

ALD 8T VIM

6T PESR

6T PESR

Investment Casting Manufacturing

100t wax injector

1000Kg robot

100Kg vacuum pouring furnace

500Kg vacuum pouring furnace
